Siberia XPA Single Row LED Bar 12"

With more than 3600 actual lumens and over 450-meter range in Xperience mode, the Siberia XPA Single Row 12“ LED bar will light up the night with its optimized beam pattern. This means a 65% higher output than previous models and a balance of forward and sideways visibility. If you like the amber glow, the XPA LED bars also feature an amber and white position light. The durable materials and powder coating make this LED bar a long-lived addition to any vehicle. It has an IP rating of IP68/IP69K, which ensures high protection against dirt and water. The installation is easy thanks to the DT-4 connector and 550 mm cable, saving you the hassle of connecting cables. The E-mode is E-approved ECE R149/148 with reference number 20. The XPA LED bars are covered by Strands Lighting Division’s 3-year function warranty.

• Voltage 10-32V DC
• Theoretical effect 51,5W
• Consumption 50W
• Functions High beam, Amber and white position light
• Consumption specific function Xperience mode: 50W / E-mode: 25W / White pos. light: 5,1W / Amber pos. light: 5,1W
• Theoretical lumen 3430lm
• Actual lumen E-mode:1725lm / Xprience mode:3620lm

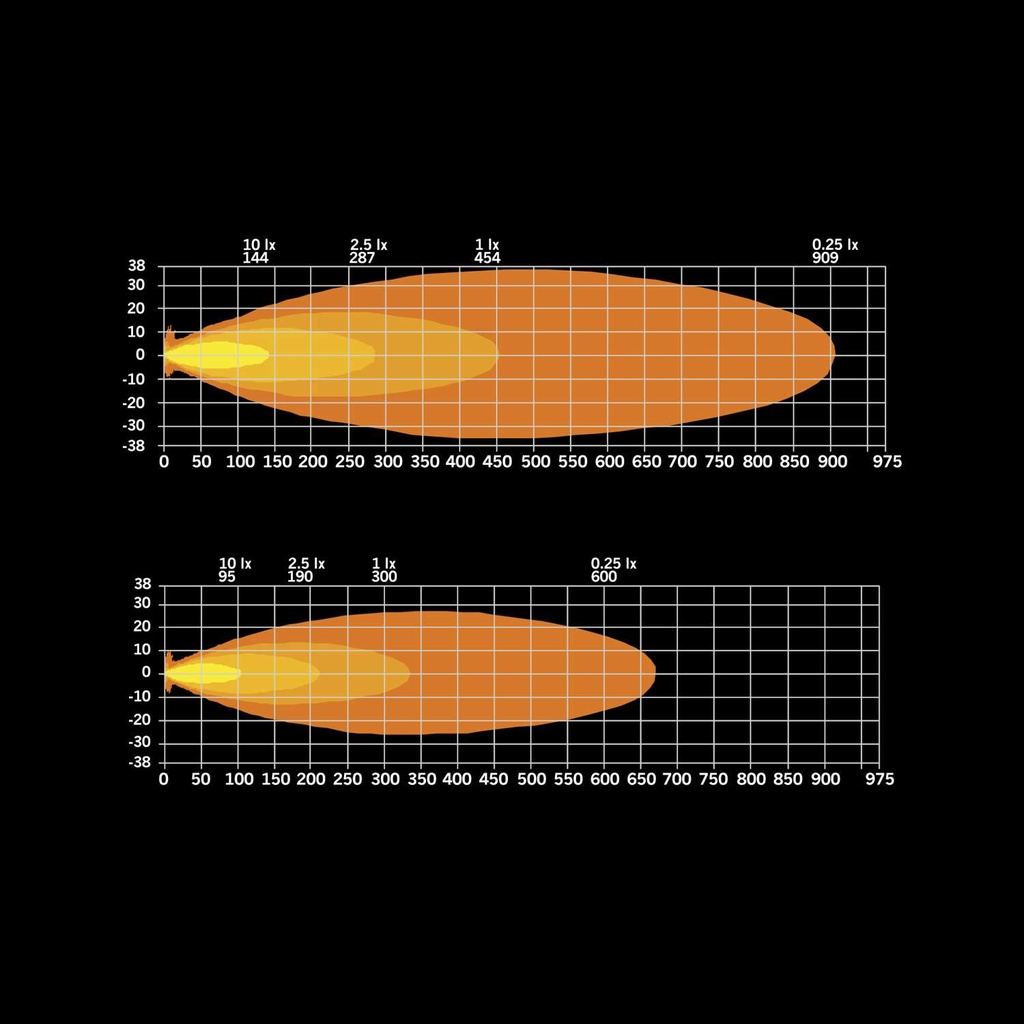

• 1 lux @ E-mode:300m / Xperience mode:454m
• Color temperature 5700K
• Beam pattern Optimized beam
• Beam angle 12,6°
• Connection DT-4PIN
• Cable length 550mm
• Color housing Black
• Color lens Clear
• Color LED´s White/amber
• Material bracket Aluminium alloy
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length 304,7mm
• Depth 55,5mm
• Height 45mm
• Height including bracket 64,5mm
• Weight 0,6kg
• IP-class IP68/69K
• Operating temperature -35 - +60°C
• E-approved Yes
• According to regulation ECE R148,R149
• Reference number 20
• EMC ECE R10
