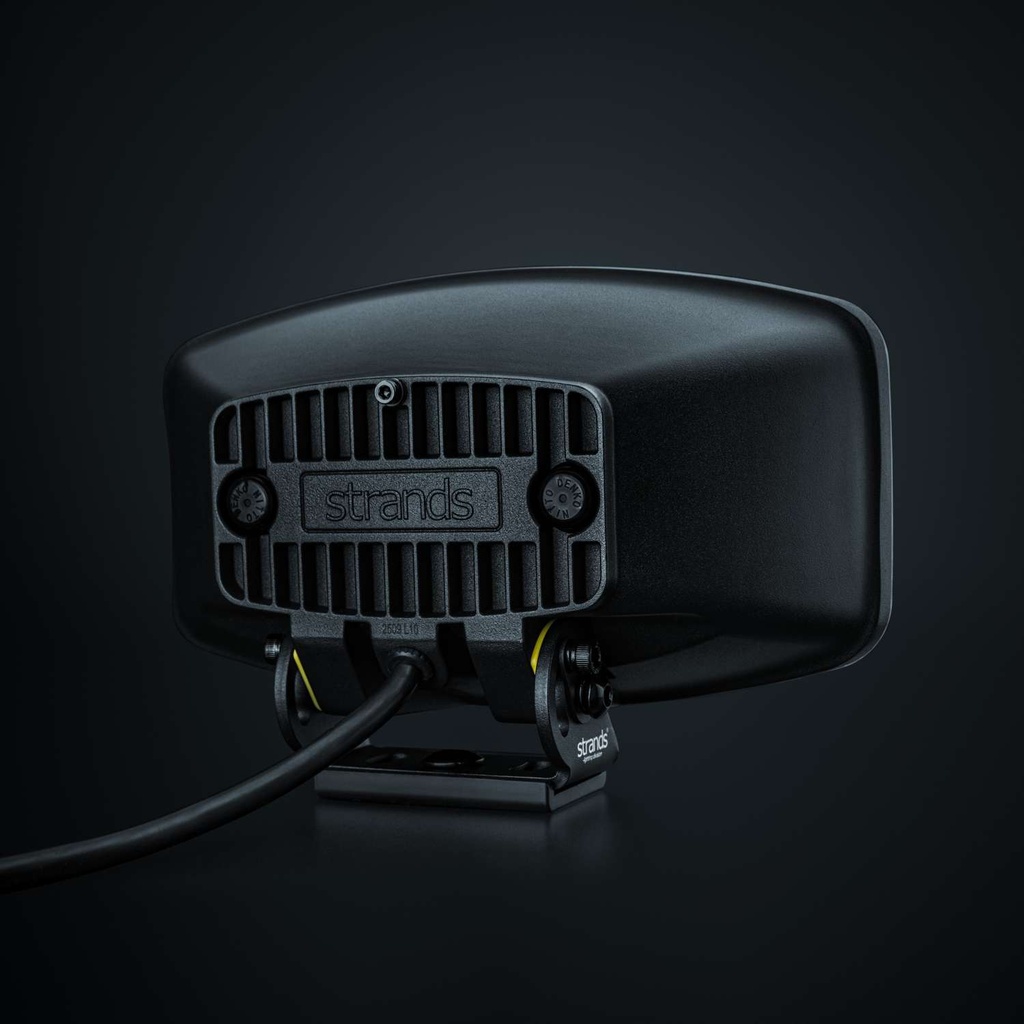

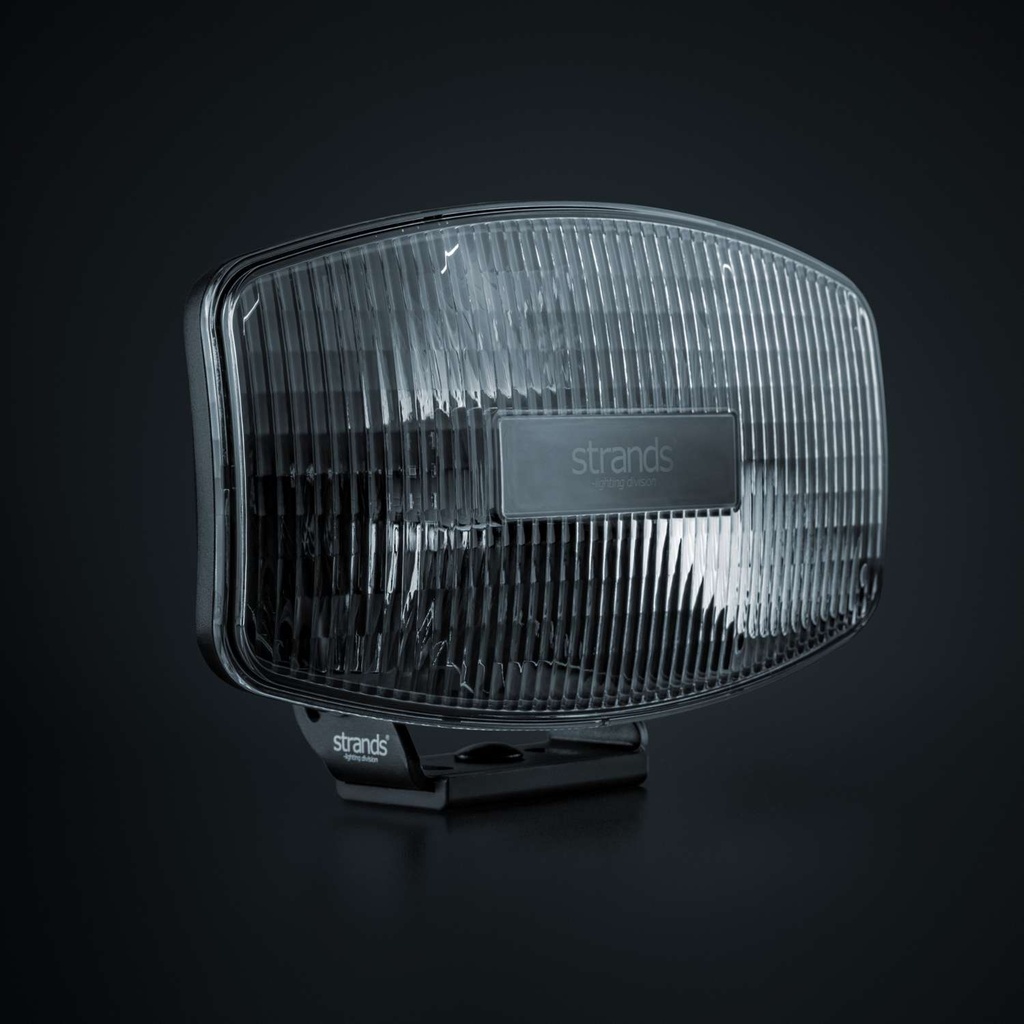

IZE LED OG Old School Driving Light | Oval
Retro Design with Warm White & Amber / Orange Position Light
10-36V | IP68/69K | ECE R148,R149 | ECE R10
Dim 247x95x141mm | Optimized beam | 250cm Cable
Consumption E-Mode : 34W / 3500 Lumen
Consumption Xperience Mode : 145W / 11.800 Lumen
Description:
IZE LED OG Oval driving light delivers a powerful, optimized beam with 11,800 actual lumens and a range of over 480 meters in Xperience mode. The E-mode is E-approved R148/149 with reference number 20, making it perfect for European roads and challenging weather conditions. Like all products in the IZE LED family, it combines a clean, timeless style with modern performance. Warm white and amber position lights create a distinctive look and remain invisible when turned off. When activated, they produce a diffused glow through the textured lens. Installation is simple with the 2.5 m cable, and everything needed is included: bracket, screws, bolts, nuts, washers, and silicone pad. It’s IP-rated IP68/69K and compatible with 10–36 V.
- Voltage: 10-36V DC
- Theoretical effect: 160W
- Consumption: 145,0W

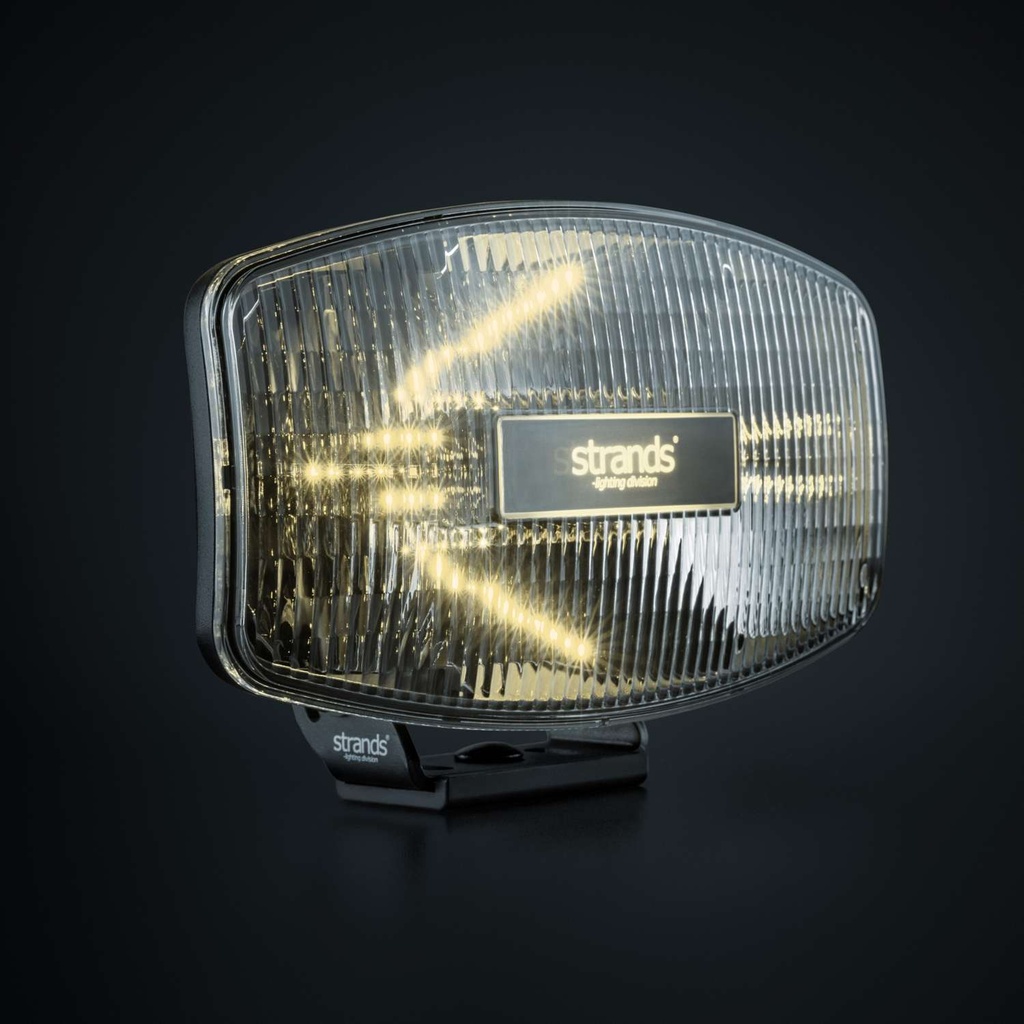

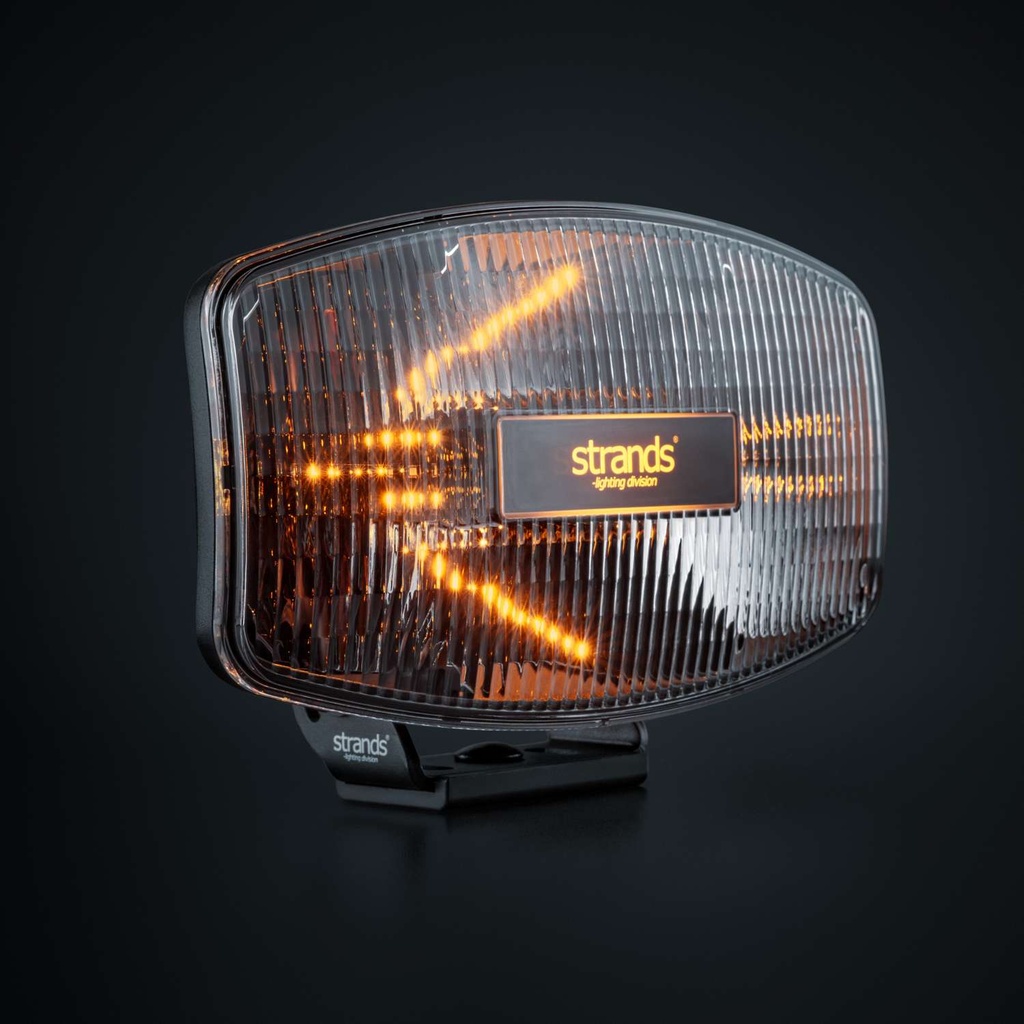

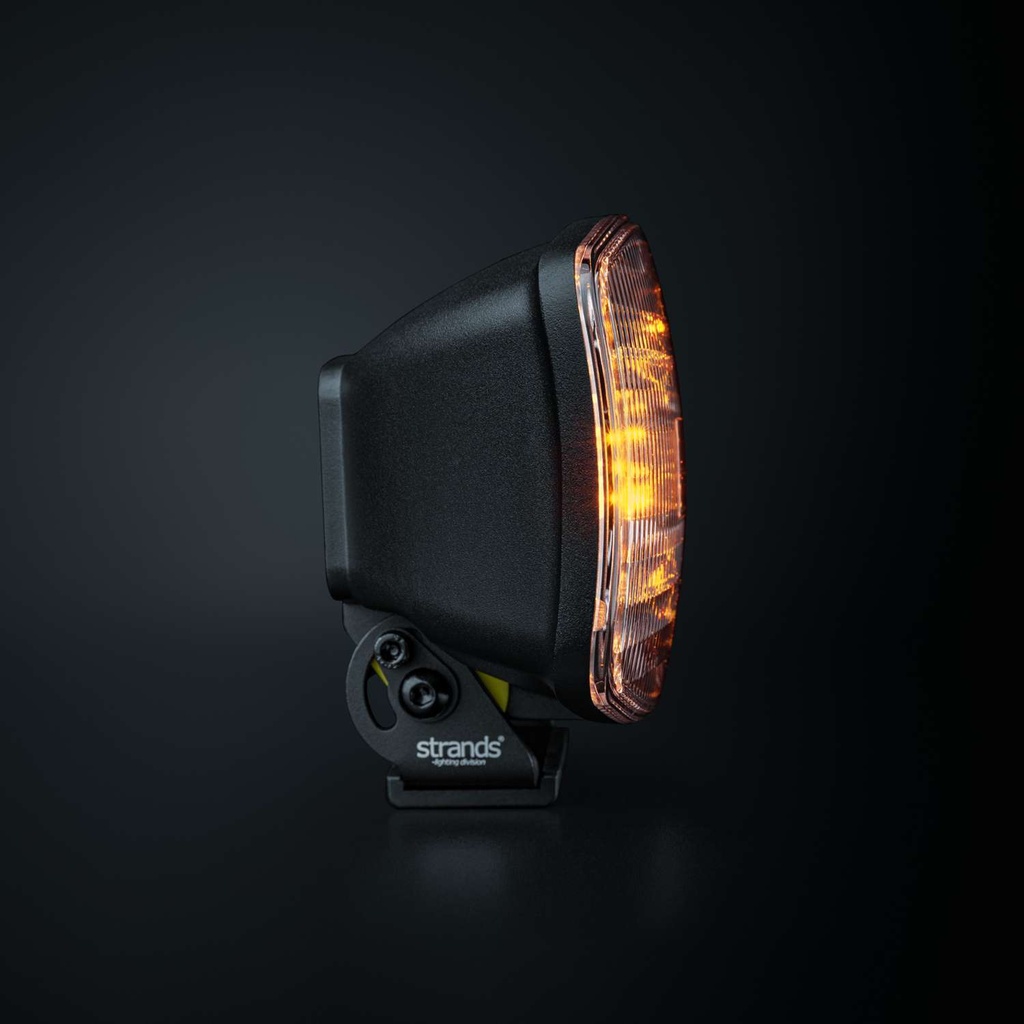

- Functions: High Beam, Warm White and Amber Position light
- Consumption specific function: Xperience mode: 145W / E-mode: 34W / Warm white pos. light: 0,75W / Amber pos. light: 0,75W
- Theoretical lumen: 13500lm
- Actual lumen: Xperience mode: 11800lm / E-mode: 3500lm

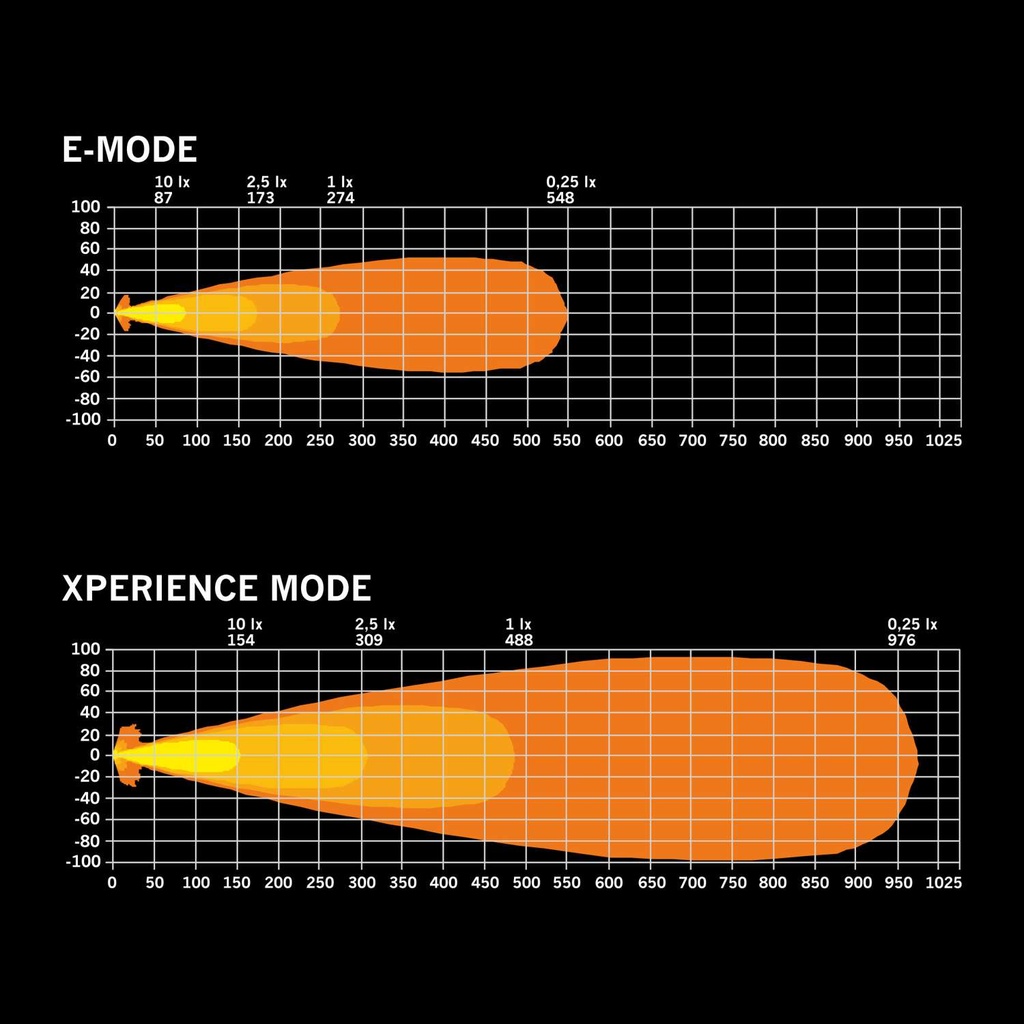

- 1 lux @Xperience mode: 488m / E-mode: 274m
- Color temperature: 4500K
- Beam pattern: Optimized beam
- Connection: Cable
- Cable length: 2500mm
- Color housing: Black
- Color lens: Clear
- Color LED´s: Warm white, white, amber
- Material bracket: Stainless steel
- Material housing/chassi: Aluminium
- Material lens: Polycarbonate

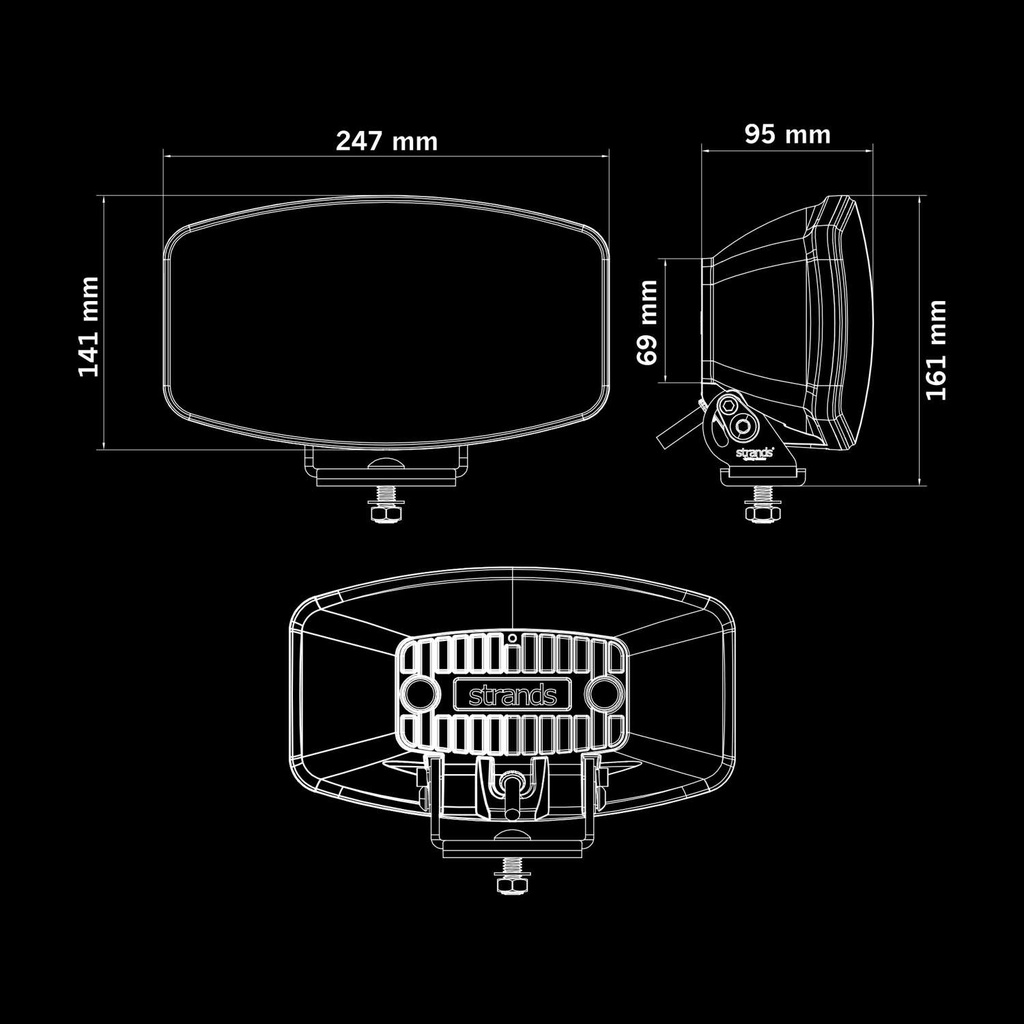

- Length: 247mm
- Depth: 95mm
- Height: 141mm
- Height including bracket: 161mm
- Weight: 1,98kg
- IP-class: IP68/69K
- Operating temperature: -40 - +60°C
- E-approved: Yes
- According to regulation: ECE R148, R149
- Reference number: 20
- EMC: ECE R10
