Nuuk D-Line LED Bar 40"

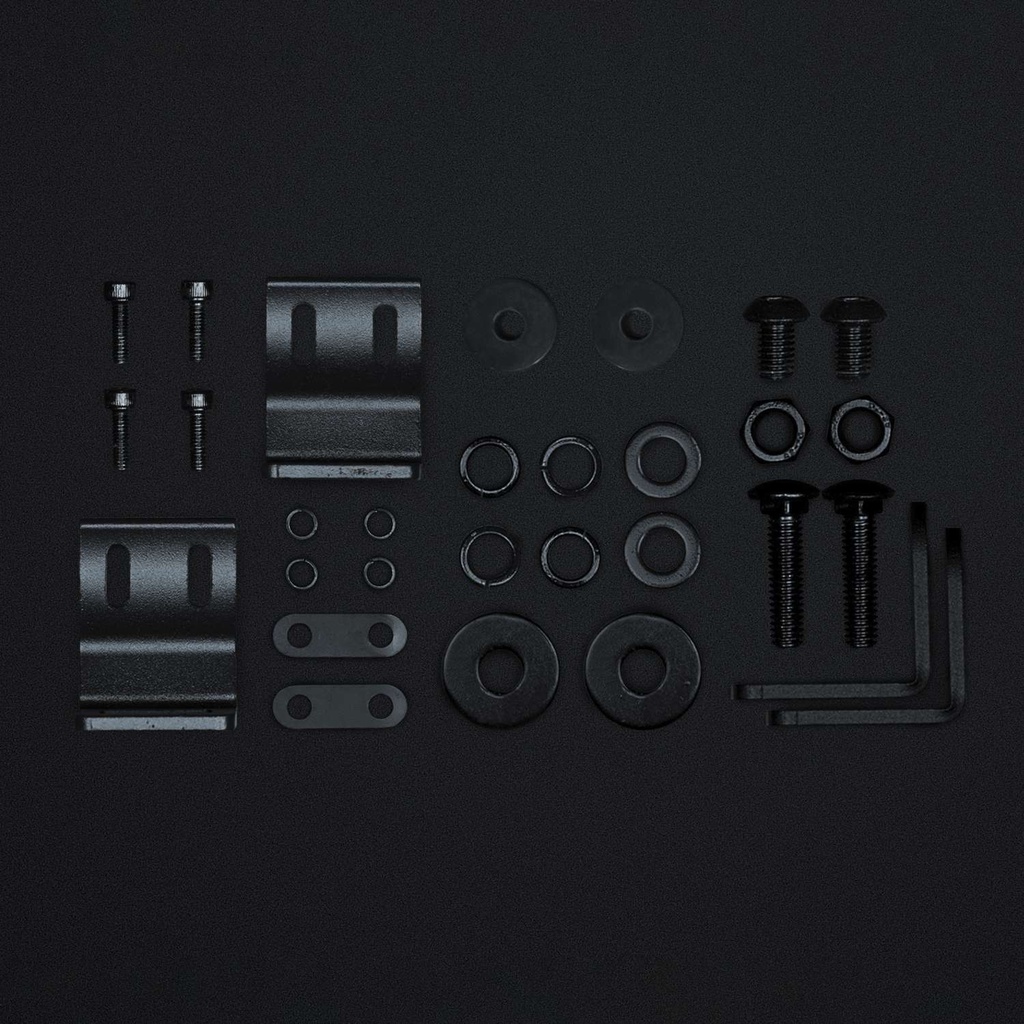

The Nuuk D-Line 40” LED bar has an extended beam pattern with a range of more than 580 meters and 19600 actual lumens in Xperience mode. It’s lightweight and slim, only 3,3 cm deep and 4,5 cm high, including the bracket. Nuuk D-Line is an ideal addition to your built-in high beam. The standard high beam is usually quite wide. With the D-Line, you’ll get more output in front for more range and better visibility. The result is a more comfortable, safer, and enjoyable driving experience. The E-mode is E-approved R148/149 with reference number 20, which is required on many European roads. Many drivers prefer this mode when driving in rainy or snowy weather, as it lessens the glare from water particles. With Xperience mode, you’ll discover a powerful output with maximum range and brightness. This LED bar has a slim black housing and lens, underlined by the glow of the white and amber position light. Nuuk D-Line is easy to use, lightweight, has a built-in relay, and the package includes everything you need for installation.

• Voltage 9-36V DC
• Theoretical effect 216W
• Consumption E-mode:38W / Xperience mode:200W
• Functions Highbeam, white and amber position light
• Consumption specific function White Pos:16,5W / Amber Pos:17W
• Theoretical lumen 21000lm
• Actual lumen E-mode: 3800lm / Xperience mode:19600lm

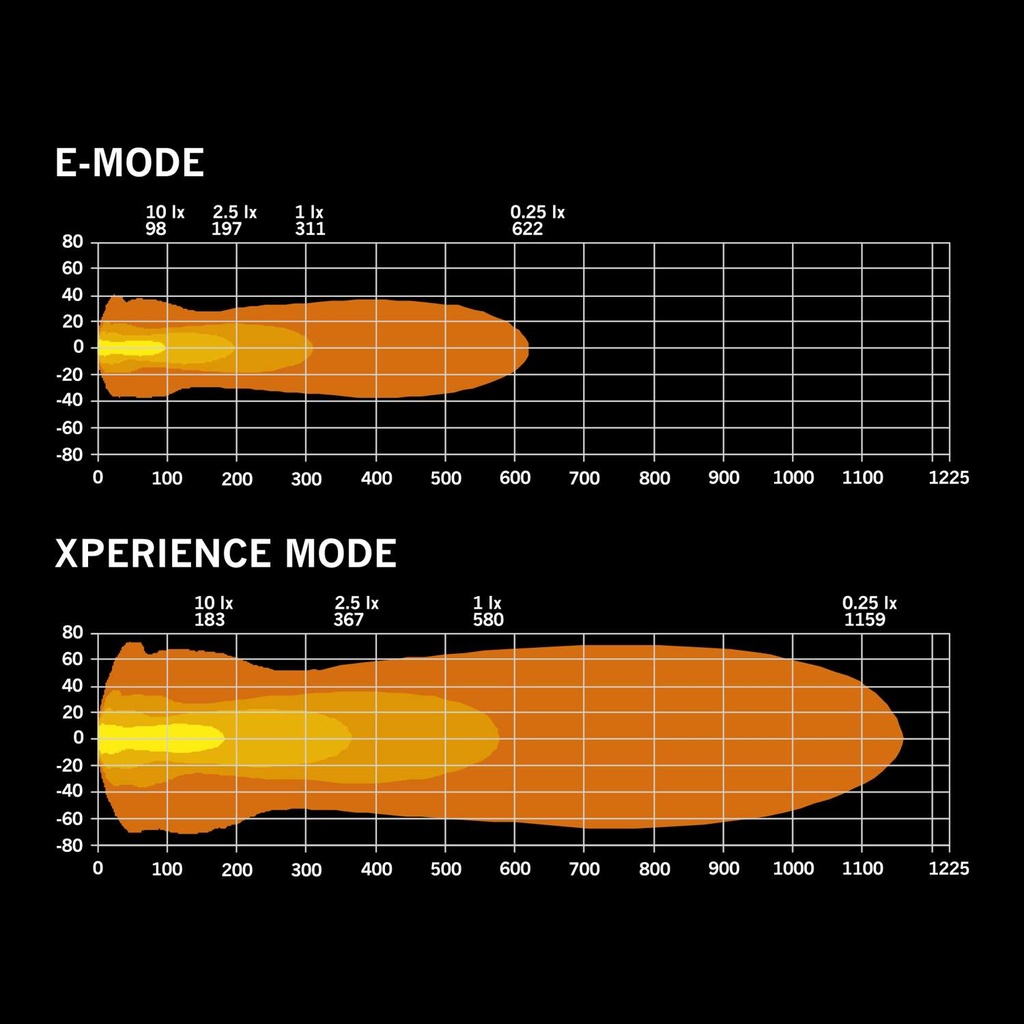

• 1 lux @ E-mode: 311m / Xperience mode:580m
• Color temperature 5000K
• Beam pattern Extended beam
• Beam angle 30,8°

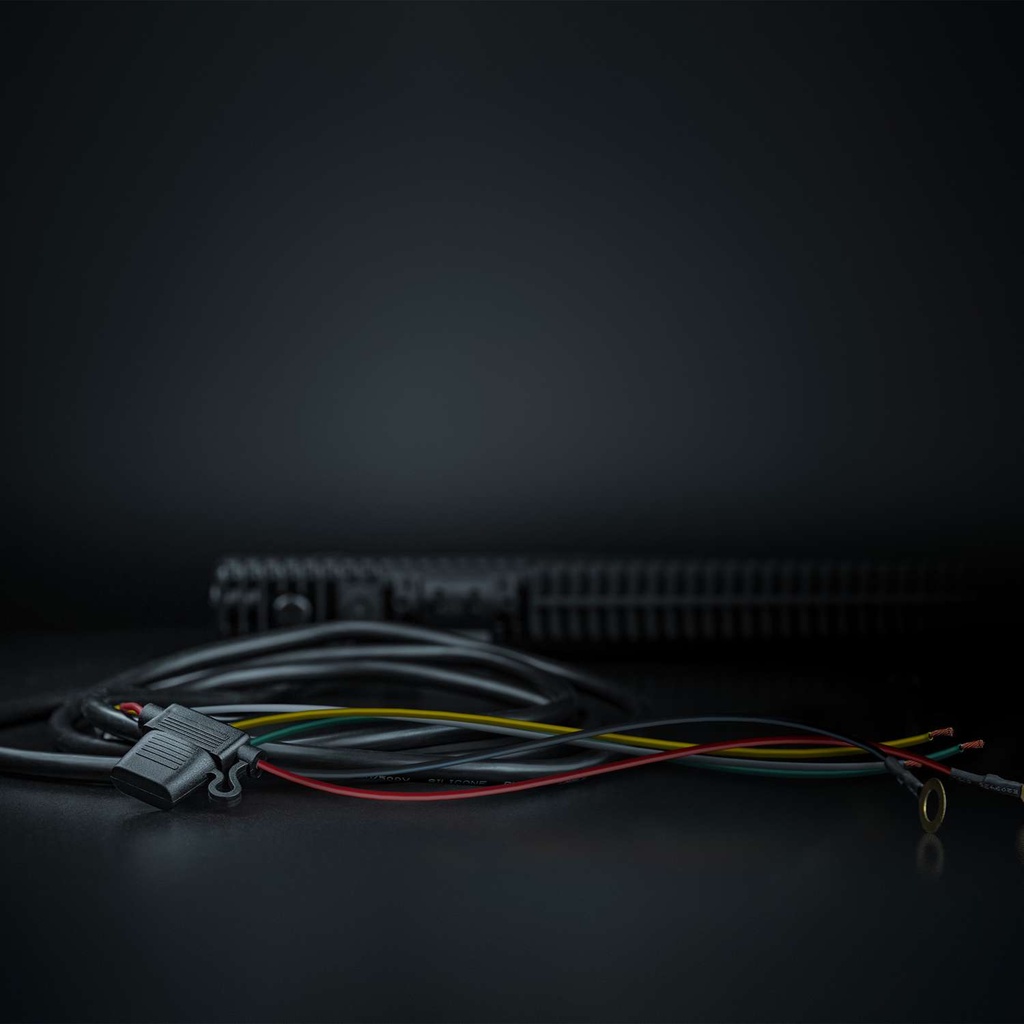

• Connection Cable
• Cable length 2500mm
• Color housing Black
• Color lens Black
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate

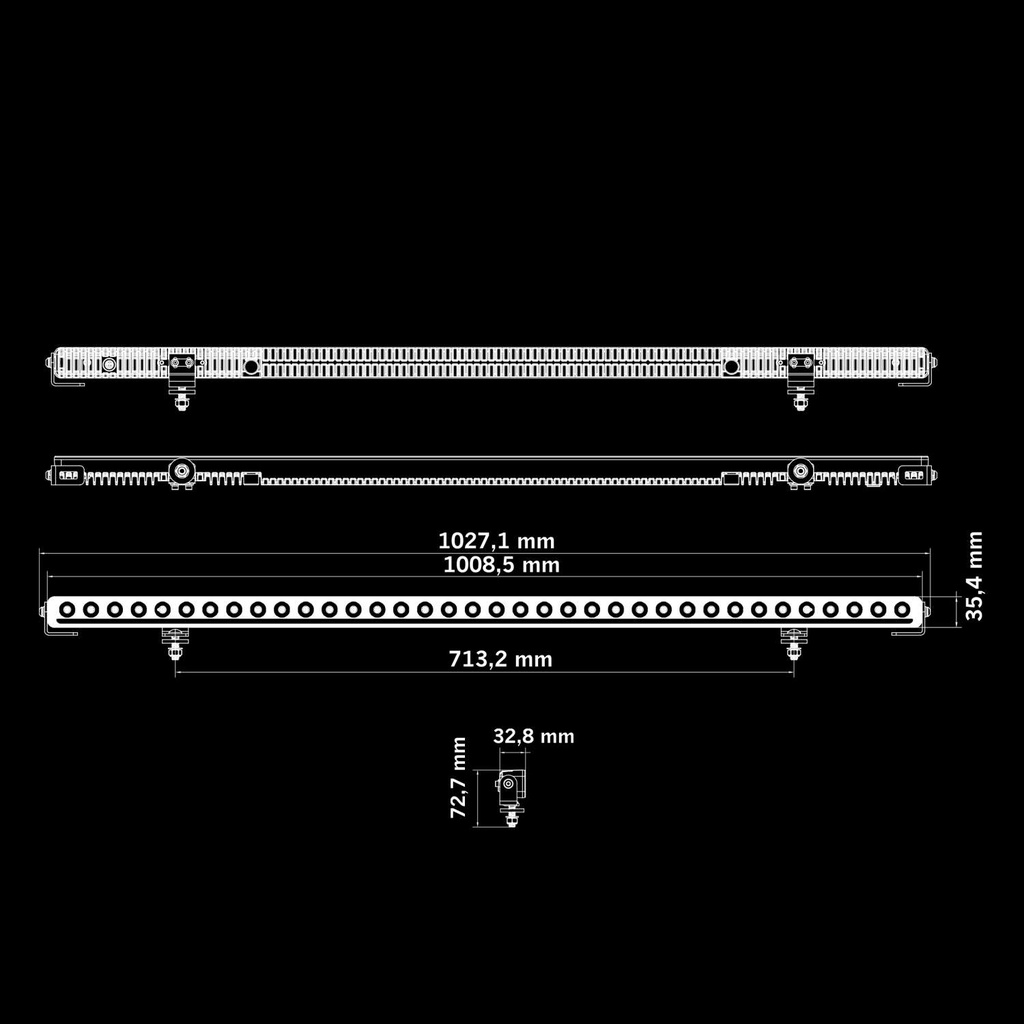

• Length 1008,5mm
• Depth 32,8mm
• Height 35,4mm
• Height including bracket 44,5mm
• Weight 2,3kg
• IP-class IP68/69K
• Operating temperature -40 - +60°C
• E-approved Yes
• According to regulation ECE R148,R149
• Reference number 20
• EMC ECE R10
