Nuuk D-Line LED Bar 20"

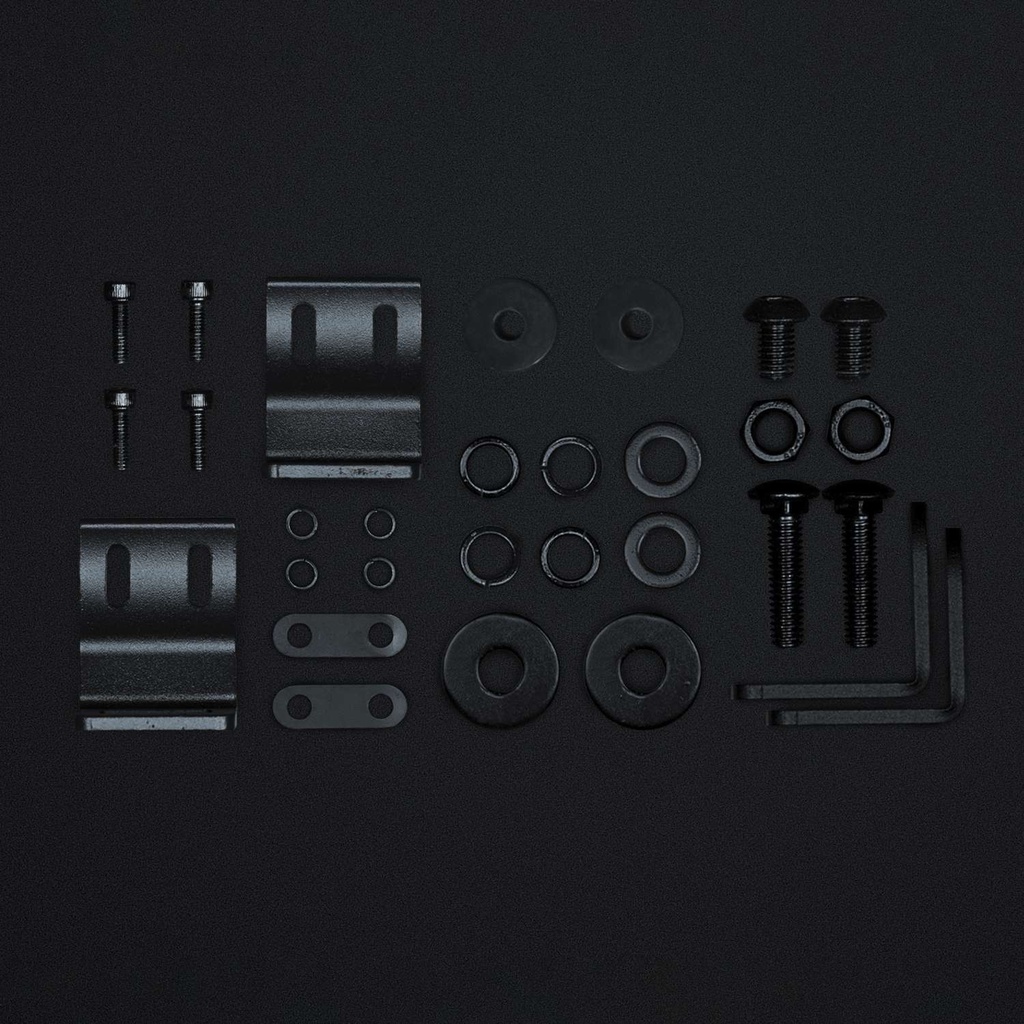

The Nuuk D-Line 20” LED bar has an optimized beam with a range of more than 492 meters and 9600 actual lumens in Xperience mode. It’s incredibly lightweight and slim, only 3,3 cm deep and 4,5 cm high, including the bracket. D-Line is an ideal addition to your built-in high beam. A standard high beam is usually quite wide, illuminating the sides of the road. With the D-Line, you’ll get more output in front for more range and better visibility. The result is a more comfortable, safer, and enjoyable driving experience. The E-mode is E-approved R148/149 with reference number 20, which many European countries require. Many drivers prefer this mode when driving in rainy or snowy weather, as it reduces the glare from water particles. With Xperience mode, you’ll discover a powerful output ideal for the darkest nights. The Nuuk D-Line has a slim black housing and lens, underlined by the glow of the white and amber position light. It’s easy to use, lightweight, has a built-in relay, and everything you need for installation is included.

Voltage 9-36V DC
Theoretical effect 124W
Consumption E-mode:32W / Xperience mode:124W

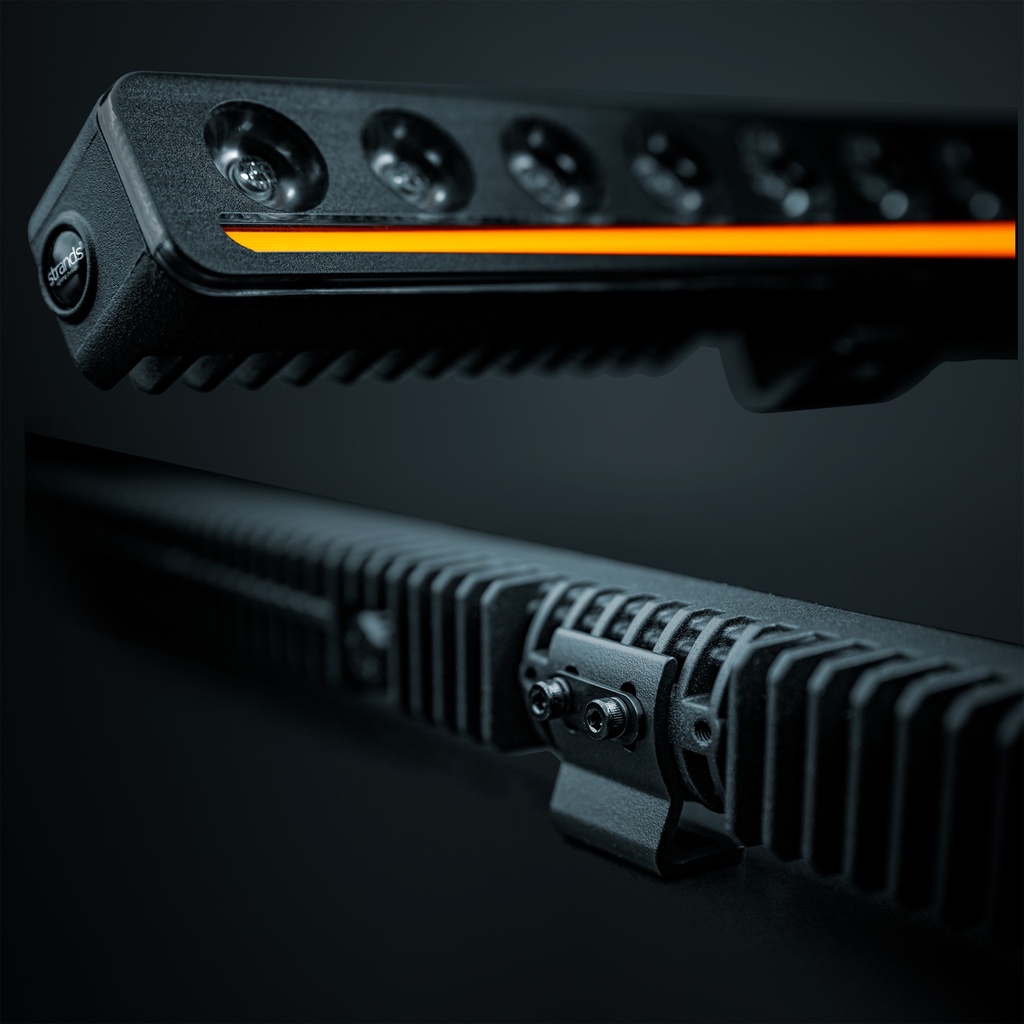

Functions Highbeam, white and amber position light
Consumption specific function White Pos:8,8W / Amber Pos:9W
Theoretical lumen 11000lm
Actual lumen E-mode:3300lm / Xperience mode:9600lm

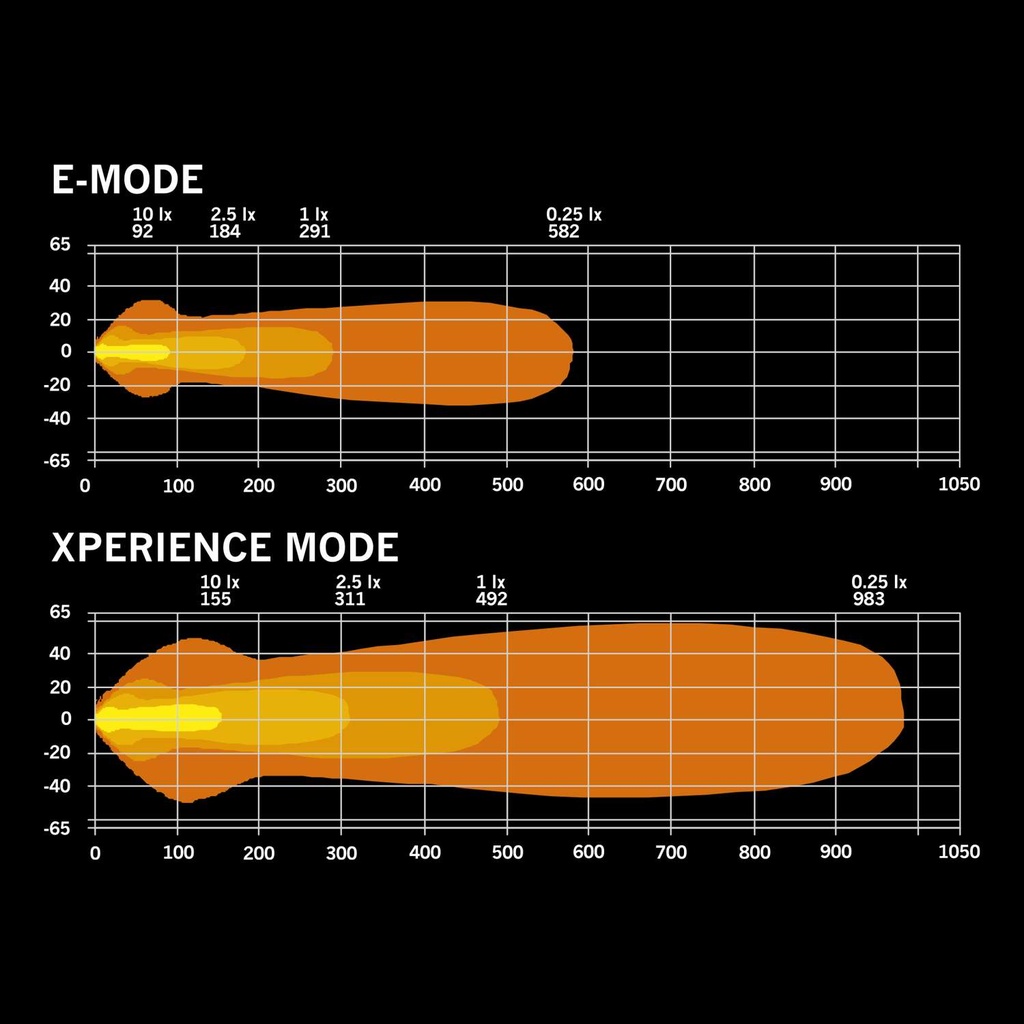

1 lux @ E-mode:291m / Xperience mode:492m
Color temperature 5000K
Beam pattern Optimized beam
Beam angle 28,8°

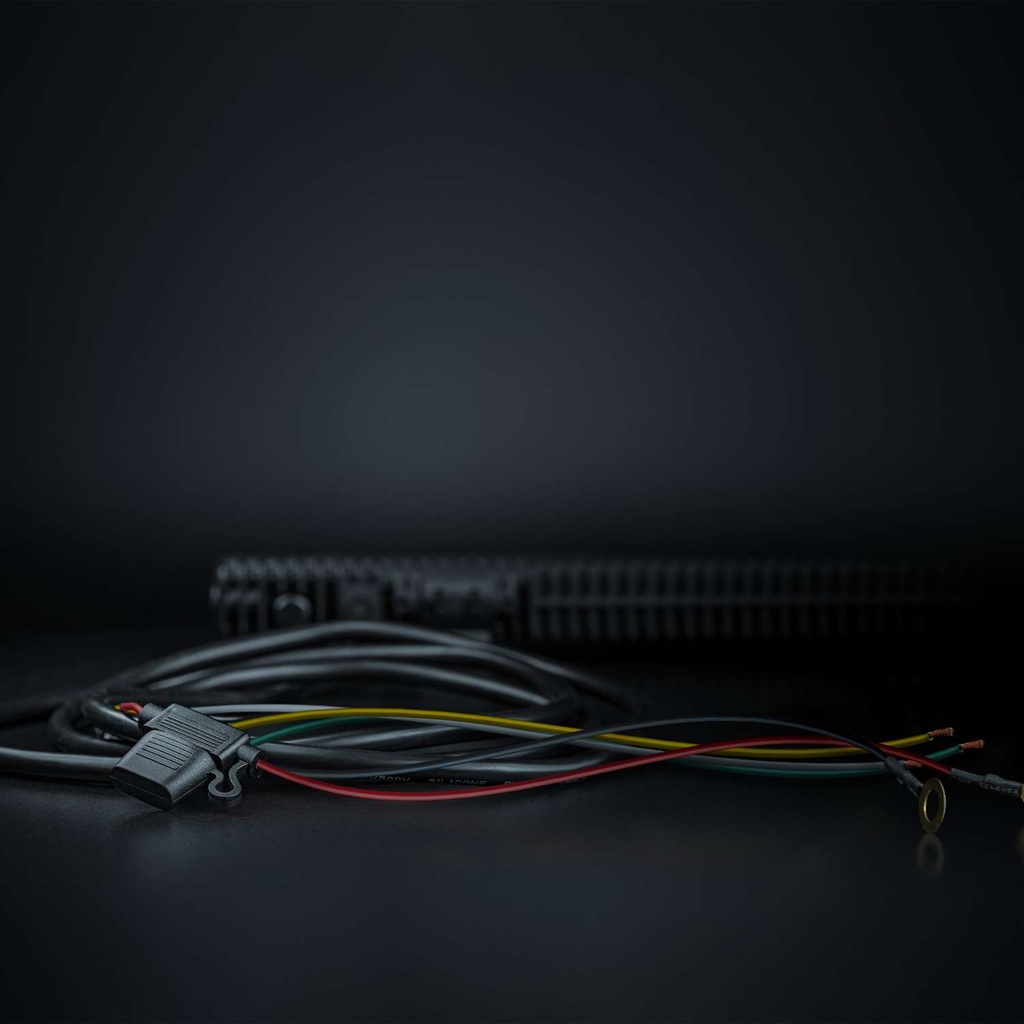

Connection Cable
Cable length 2500mm
Color housing Black
Color lens Black
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate

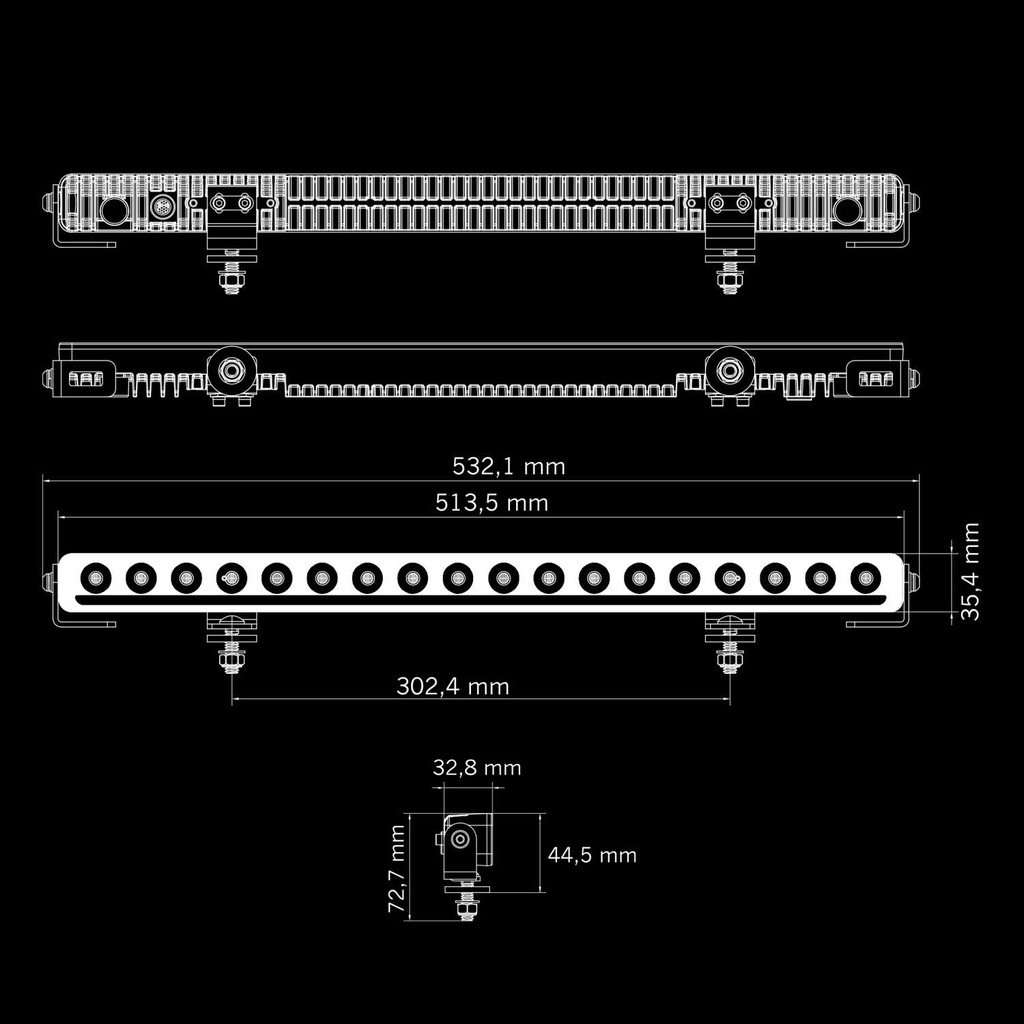

Length 513,5mm
Depth 32,8mm
Height 35,4mm
Height including bracket 44,5mm
Weight 1,2kg
IP-class IP68/69K
Operating temperature -40 - +60°C
E-approved Yes
According to regulation ECE R148,R149
Reference number 20
EMC ECE R10
