Nuuk D-Line LED Bar 10"

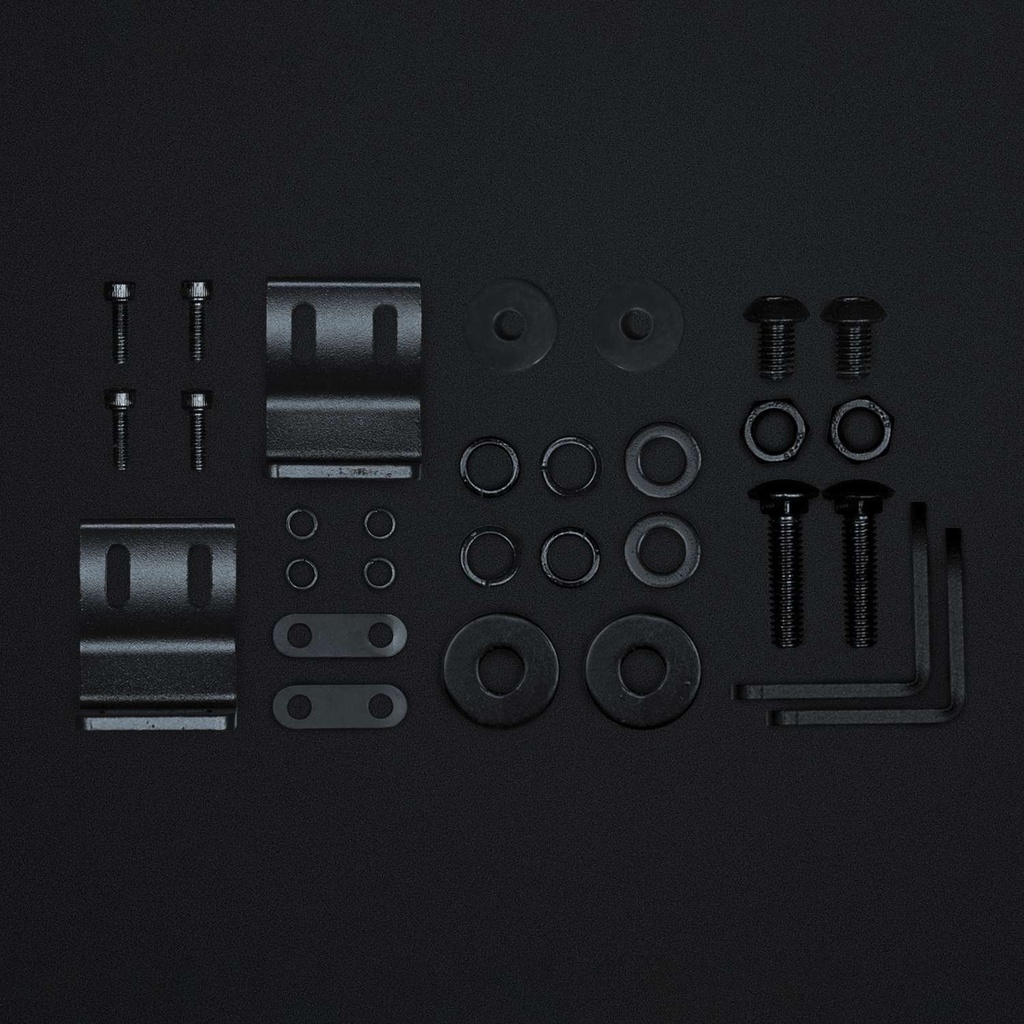

The Nuuk D-Line 10” LED bar has an optimized beam with a range of more than 376 meters and 5500 actual lumens in Xperience mode. It’s incredibly lightweight and slim, only 3,3 cm deep and 4,5 cm high, including the bracket. D-Line is an ideal addition to your built-in high beam. A standard high beam is usually quite wide, illuminating the sides of the road. With the D-Line, you’ll get extra output in front, adding more range and better visibility. The result is a more comfortable, safer, and enjoyable driving experience. The E-mode is E-approved R148/149 with reference number 20, which many European countries require. Many drivers prefer this mode when driving in poor weather, as it reduces the glare from water particles. With Xperience mode, you’ll discover a powerful output ideal for the darkest nights. The Nuuk D-Line has a slim black housing and lens, underlined by the glow of the white and amber position light. It’s easy to use, lightweight, has a built-in relay, and is delivered with everything you need for installation.


Voltage 9-36V DC
Theoretical effect 60W
Consumption E-mode:26W / Xperience mode:60W
Functions Highbeam, white and amber position light
Consumption specific function White Pos:3,4W / Amber Pos:3,6W
Theoretical lumen 6000lm
Actual lumen E-mode:3100lm / Xperience mode:5500lm

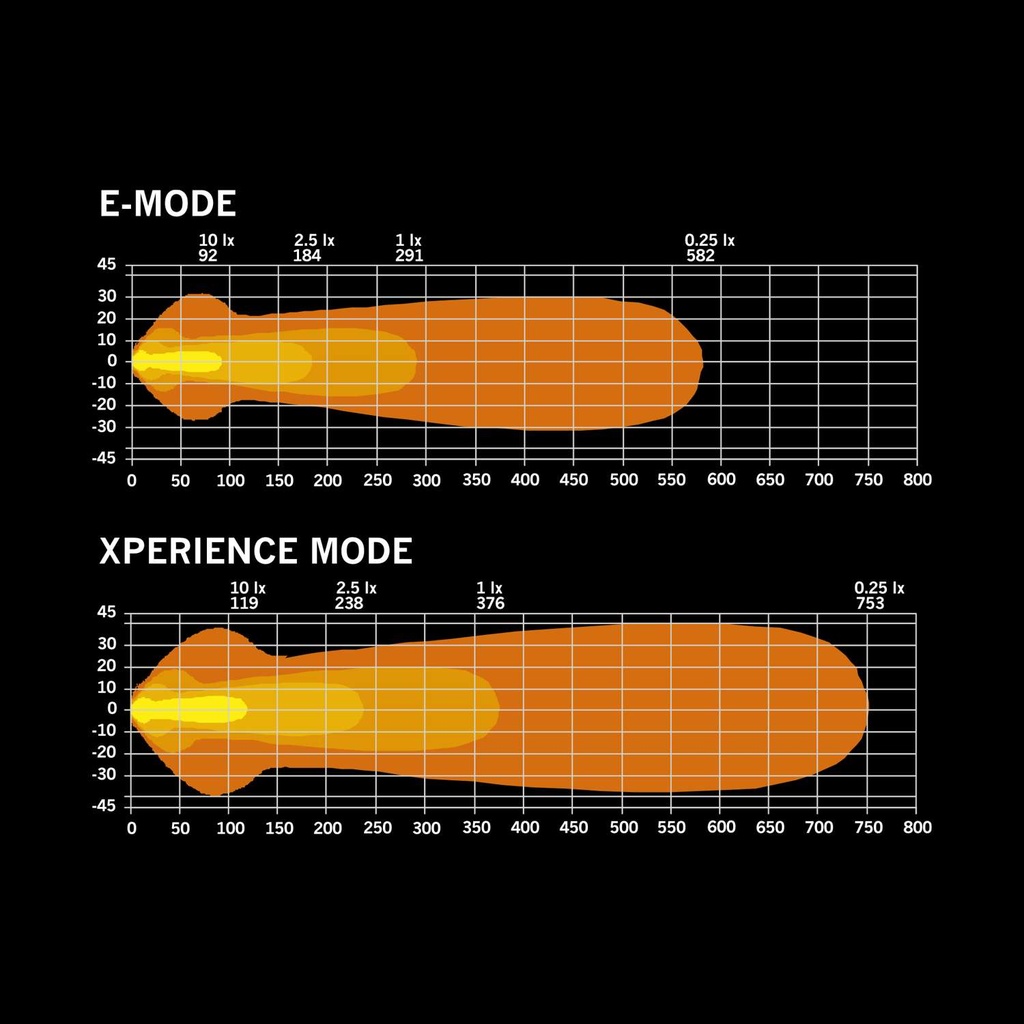

1 lux @ E-mode:291m / Xperience mode:376m
Color temperature 5000K
Beam pattern Optimized beam
Beam angle 30,1°
Connection DT-4PIN
Cable length 500mm
Color housing Black
Color lens Black
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate

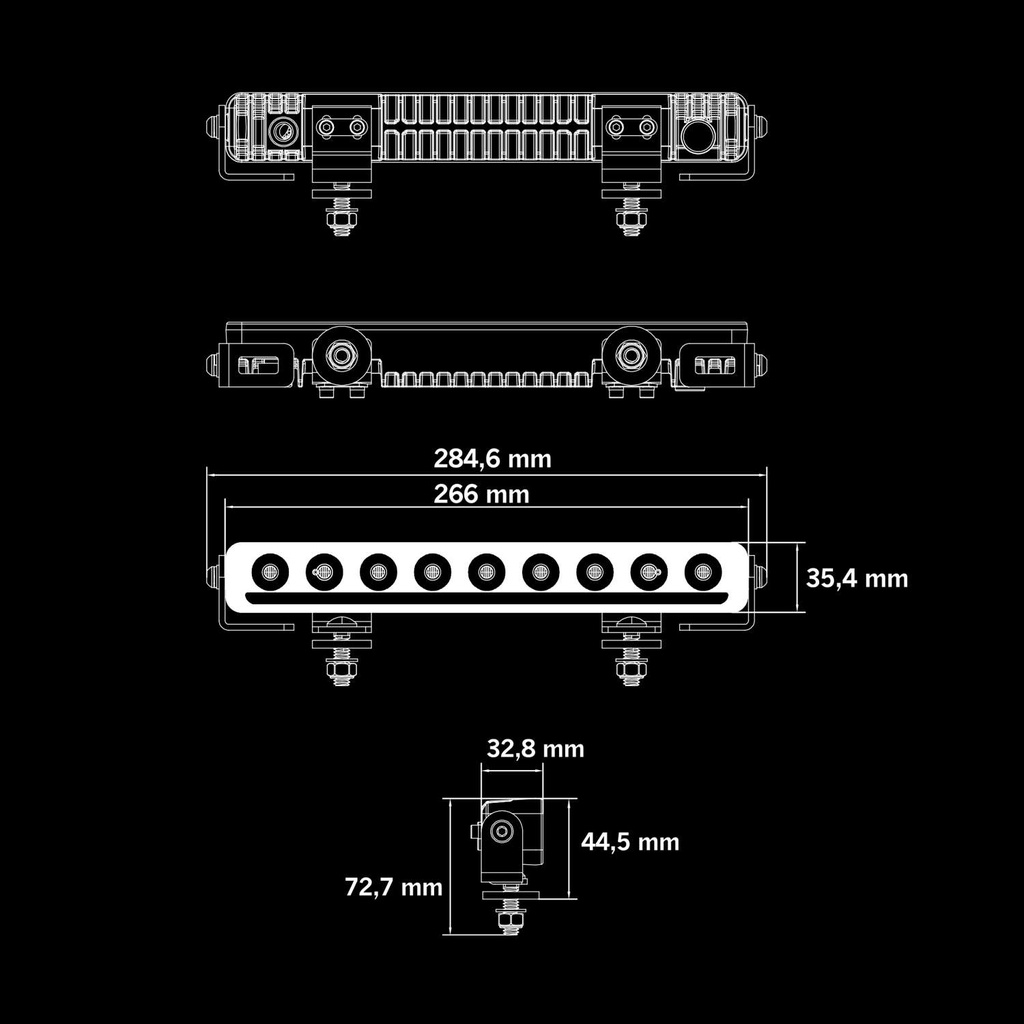

Length 266mm
Depth 32,8mm
Height 35,4mm
Height including bracket 44,5mm
Weight 0,7kg
IP-class IP68/69K
Operating temperature -40 - +60°C
E-approved Yes
According to regulation ECE R148,R149
Reference number 20
EMC ECE R10
