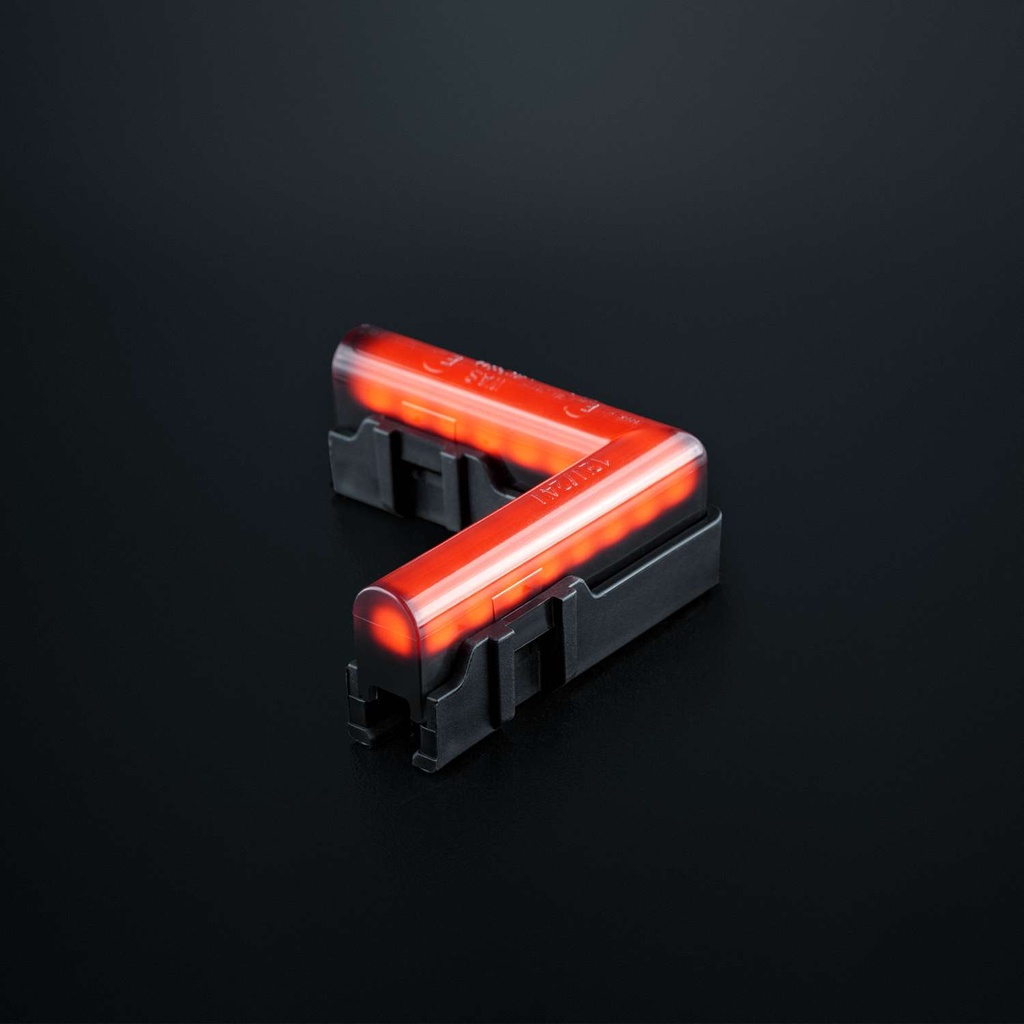

Freedom Dark Line Positielicht Rood | Hoeklicht
900042
12-24V | 3W
Polycarbonate
LxHxB: 62.7 x 62.7 x 24.5mm
IP6K9K | ECE R10 | ECE R148
| Fabrikant | Model | Beginjaar | Einde jaar |
|---|
Omschrijving:
The Freedom Dark Line red corner position light is installed using a click-in frame. The durable PC lens and polypropylene housing protect against corrosion and guarantee a long-lived product. With an IP rating of IP6K9K, you can be sure it will withstand harsh weather. The Dark Line is something completely new on the market. It can be connected to the long version (Part No. 900047-49) and the small version (Part No. 900044-46) for a creative way to style your truck or trailer. It’s 6,3 cm long and high. The slim size and eye-catching glow lead to new levels of styling and visibility, so get creative with this unique take on the fiber optic look.
- Voltage 12-24V DC
- Theoretical effect 3,5W
- Consumption 3W
- Functions Rear position
- Connection Cable
- Cable length 400mm
- Color housing Black
- Color lens Dark
- Color LED´s Red
- Material bracket Polycarbonate
- Material housing/chassi Polycarbonate
- Material lens Polycarbonate
- Length 62,7mm
- Depth 24,5mm
- Height 62,7mm
- Weight 0,08kg
- IP-class IP6K9K
- Operating temperature -40 - +40°C
- E-approved Yes
- According to regulation ECE R148
- EMC ECE R10
- Additional information Refer to the manual for CC dimensions
